EDG-A utilizes advanced electromagnetic technology to obtain accurate asphalt pavement density readings.
Features:
- No radioactive materials or special license required
- Light weight and easy to use
- 24 hours of portable operation
- Measures density in common units (Kg./M3)
- Measures for asphalt temperature
- Stores 4000 readings on internal data logger
- Optional download to computer
Packing List:
- One storage case
- One edg -a unit
- One battery charger: 220V/50h z
- One u sB data cable
- User manual, warranty card, certificate

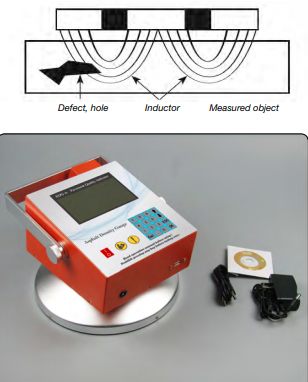

The density of asphalt pavement is directly proportional to the measured dielectric constant of the material. EDG-A uses electrical waves to measure dielectric constant using an innovative, toroidal electrical sensing field established by the sensing plate. t he electronics in the edg -a convert the field signals into material density readings and displays the results. Once calibrated, direct density readings can be consistently obtained. as shown below:
EDG-A can be used in three different measurement or
run modes, respectively:
Single reading mode
Continuous reading mode
Average reading mode
Single reading time less than five (5) seconds. Average averages five (5) readings and stores data including date and time. stores thousands of records
Continuous instantaneous density readings. Segregation identifies variations in material density associated with segregation
Function
Density % compaction
Integrated temperature sensing
Real-time temperature display 0° c to 350°c
Calibration Mode
Normal correlation offset to cores
Measurement Specification
Sensing area: 11 inch dia. base allows optimum measurement on fine and coarse material types. Max Measurement Depth 110mm Measurement Display density, % compaction, Surface temperature, Mix name & project name
Mechanical Specification
Shipping Weight w/ c ase 9.00kg
Shipping Dimensions 490 x 220 x 390 mm
Electrical Specification
Battery 2000mAh Ni-MH , 12V
Recharge time 4 hours
Battery charger 12V Universal AC charge
Computer ports 1 USB port
EDG-2A utilizes advanced electromagnetic technology to obtain accurate asphalt pavement density readings.
Features:
Fast and accurate material density and compaction test. The use of non-nuclear technology means exemptions from licensing, service charges or security considerations. You can read the data accurately in three seconds.
Touch screen operation, easy operation. No other method calibration, site direct test. Higher precision and better stability.
Packing List:
- One storage case
- One EDG-2A unit
- One battery charger: 220V/50Hz
- One USB data cable
- User manual, warranty card, certificate

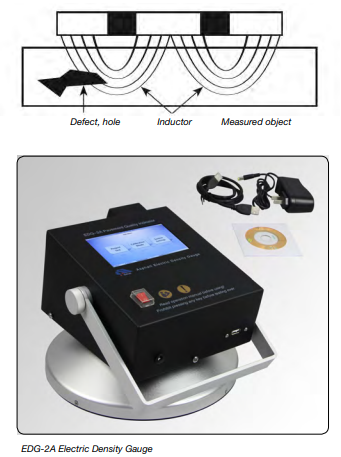

The density of asphalt pavement is directly proportional to the measured dielectric constant of the material. EDG-2A uses electrical waves to measure dielectric constant using an innovative, toroidal electrical sensing field established by the sensing plate. The electronics in the EDG-2A convert the field signals into material density readings and displays the results. Once calibrated, direct density readings can be consistently obtained. As shown below:
EDG-2A can be used in three different measurement or run
modes, respectively:
Single reading mode
Continuous reading mode
Average reading mode
Single Reading time less than three seconds. Average Averages five (5) readings and stores data including date and time. Stores thousands of records
Continuous Instantaneous density readings. Segregation Identifies variations in material density associated with segregation
Function
Density % Compaction
Porosity %
Integrated Temperature Sensing
Real-time temperature display 0° C to 350°C
Calibration Mode
Normal Correlation offset to cores
Measurement Specification
Sensing Area 11 inch dia. base allows optimum measurement on fine and coarse material types. Max Measurement Depth 110mm Measurement Display Density, % Comp action, Surface Temperature, Mix Name & Project Name
Mechanical Specification
Shipping Weight w/ Case 9.00kg
Shipping Dimensions 490 x 220 x 390 mm
Electrical Specification
Battery 2000mAh Ni-MH , 12V
Recharge Time 4 hours
Battery Charger 12V Universal AC charge
Computer Ports 1 USB Port
